XXL swing door
An XXL hinged door has the same characteristics as a conventional hinged door… except for the dimensions, which are exceptional. Heinen specialises not only in high-performance doors but also in amazing dimensions!
How big can an XXL swing door be?
For example, you could opt for a fire-resistant XXL hinged door (EI1 60 for instance) which will fill an opening up to 4.30 x 4.30 m,and remain compliant! In addition, with an XXL basic Metal+ XXL door, you can fill openings up to 6 m high .
Contact us for more information about the amazing dimensions of our hinged doors.

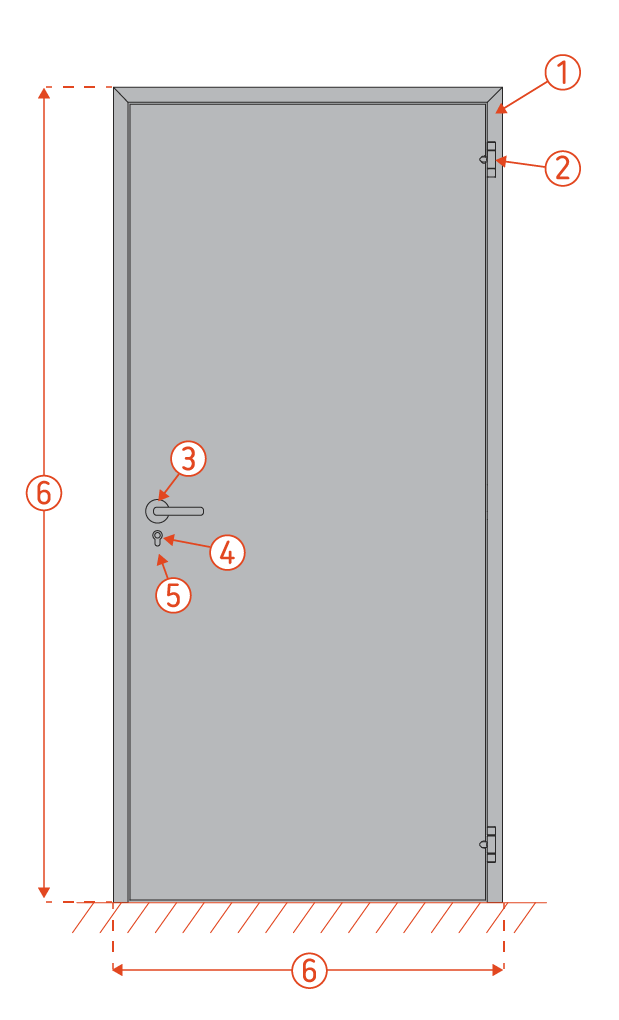

Basic fittings
Door frame and leaf finish
Magnelis® Hot-dip galvanised ZM 250 steel (250g/m², 20µm thick).
Hinges
Two screw-on steel hinges, adjustable and replaceable
Handles
A set of two U-shaped aluminium handles
Lock and cylinder
Standard 1-point lock with standard cylinder
Cylinder backplate
In PVC, decorative (the cylinder is flush with the door leaf)
Dimensions
Always made to measure

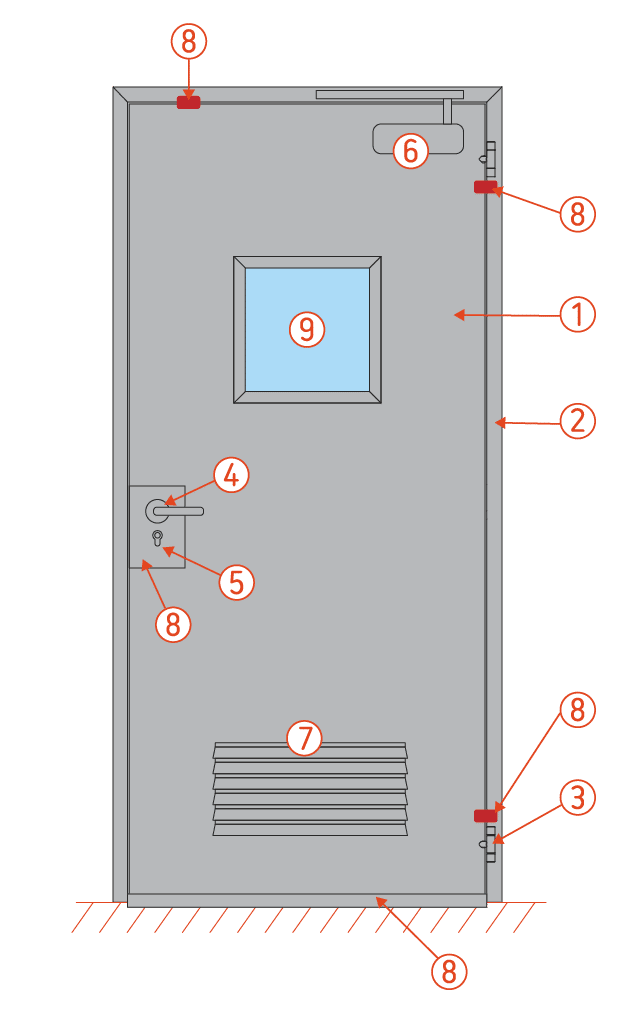

Optional fittings
Door leaf finish
Stainless steel 304, 316 / skinplate or RAL color *
Door frame finish
Stainless steel 304, 316 / skinplate or RAL color *
Hinges
One or more hinges can be added; these are always adjustable and replaceable
Handles
Handles, doorknobs, pull handles, etc. in aluminium or stainless steel
Locks and closing systems
No lock (door closers only) / manual, automatic, anti-panic, 1-point, 3-points or other locks on request / holding magnet
Door closers
With scissor arm or sliding arm, fitted on the hinge or non-hinge side, invisibly integrated door closer, closure selectors, open position maintained, etc.
Ventilation
Compliant ventilation grilles
Various options
Door leaf position indicator, non-removable security studs, soundproof doorsills, door stops, storm chains, impact plates and many other fittings.
Glazing
Standard or made-to-measure glazing for largely glazed door (see glazing types available)
* RAL colors via our Partners
